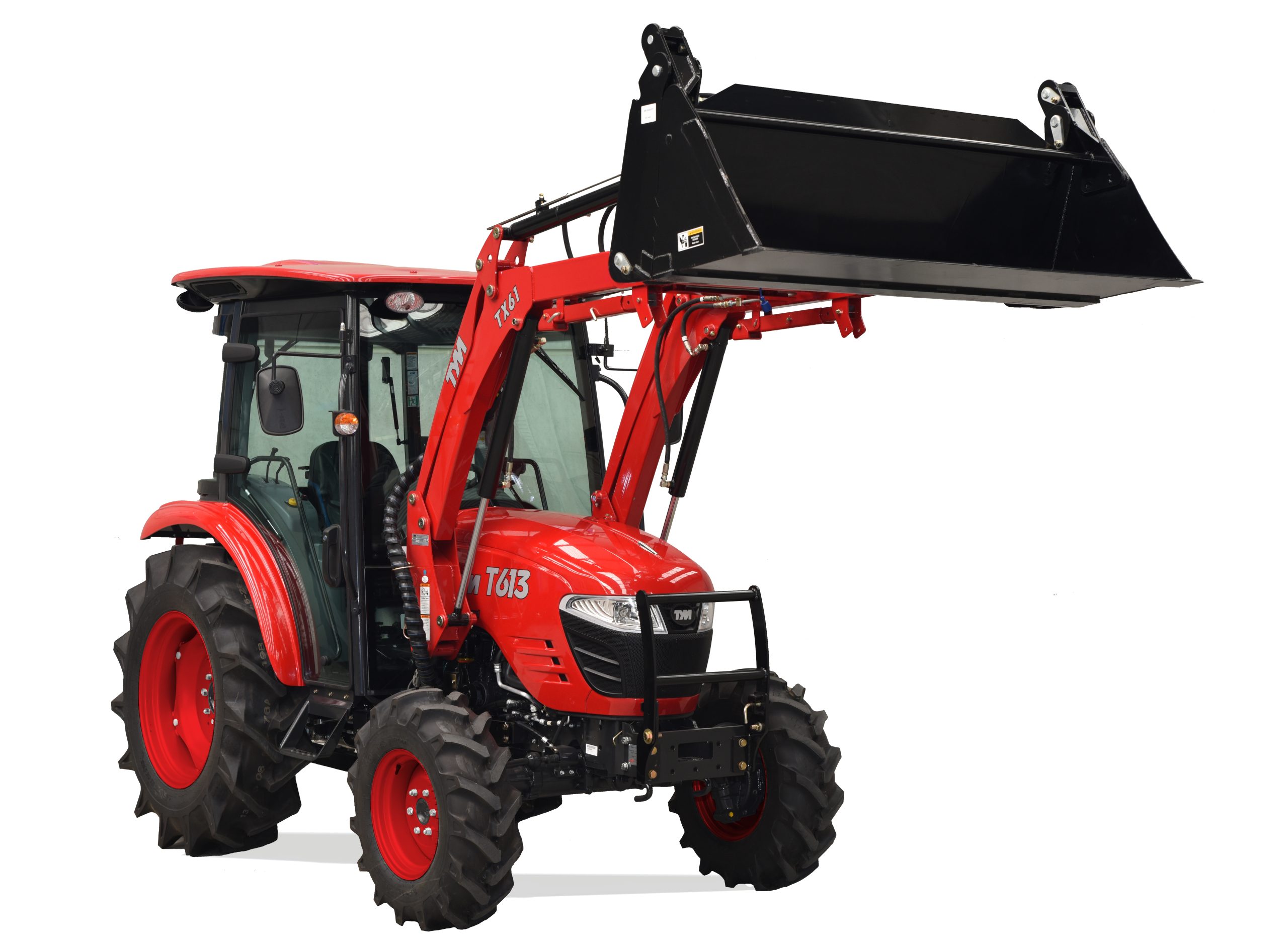

T613 HST Utility Cabin Tractor

FEATURES OF THE TYM ‘T613’ HST 4WD CABIN TRACTOR

ENGINE

• Powered by 60hp TYM 4 cylinder Diesel engine
• Quiet running engine certified to meet the stringent Tier III engine and noise emission standards
• 2286cc engine, resulting in high torque for serious work
• Dual dry element air cleaner for Australia’s dusty conditions

• 50 litre fuel tank capacity will provide for many working hours
• Easy access from ground level

DRIVELINE

• The tractor weight of 1960kg is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is, in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation

• Three (3) range Hydrostatic transmission gives infinitely variable driving speed from stationary to 33km/h in forward or reverse direction
• Hydrostatic drive controlled by Independent Forward and Reverse pedals for easy simple operation

• The new Auto Throttle feature links the HST pedals to the engine throttle to synchronise the tractor’s speed and engine RPM. This simplifies operation and increase productivity
• Ergonomic side by side foot control reduces fatigue and errors

• The heavy duty front axle performs in tough working conditions and handles loads with ease

• Rear axle with diff-lock for difficult traction situations
• 4WD and the diff-lock provides better traction, control and performance
• 4WD mode is controlled by a lever on the left hand side of the operator

• Inboard wet disc brakes can be split for indpendent left and right side braking to assist turning in tight situations

PTO, HYDRAULICS & LINKAGE

• Control for the linkage and hydraulic remotes are on the right-hand side
• Adjustable linkage lift speed

• 3-point linkage with quick attach lower link arms
• Linkage arms with simple pin adjustable sway position
• 3-point linkage with 1500kg lifting capacity gives the tractor great versatility and range of applications

• 2 sets of double-acting hydraulic remotes
• The PTO driveline is a simple and direct design for high efficiency and power
• The PTO clutch is an independent oil immersed clutch pack for long life with simple push-button operation

• Auto-PTO function automatically disengages the PTO when the linkage is raised, and automatically re-engages when lowered; a great function that simplifies repeated row work and prevents implement damage

• Adjustable rear wheels to widen track width for steep conditions to improve stability

OPERATOR AREA

• Uncluttered flat floor without trip hazards
• Rubber floor mat reduces noise and provides an easy to maintain surface
• Plenty of leg room

• Ergonomic design with easy to reach controls
• Easy to read instrument panel
• Combination switch controls lights and indicators
• Digital hour metre display

• Tiltable steering wheel

• Fully integrated joystick for control of front end loader with electric button for third function operation (when loader is fitted)

• Adjustable suspension seat for comfort

• Air-conditioned cabin with heating
• Radio/MP3/USB/SD Player

• Rear windscreen wiper & washer
• Rear external cabin work lights

MAINTENANCE

• Easy access to all maintenance areas including battery
• Pop-up 1 piece bonnet
• Radiator with removable screen to prevent clogging

OPTIONS

FRONT END LOADER

• Level lift front-end loader ideal for materials handling and utility work around the farm

• Quick detach Euro hitch & loader parking stands
• Full details & specifications on the optional front end loader

TYRES

• Choice of agricultural or industrial tyres

FRONT WEIGHT

• Front weights available
