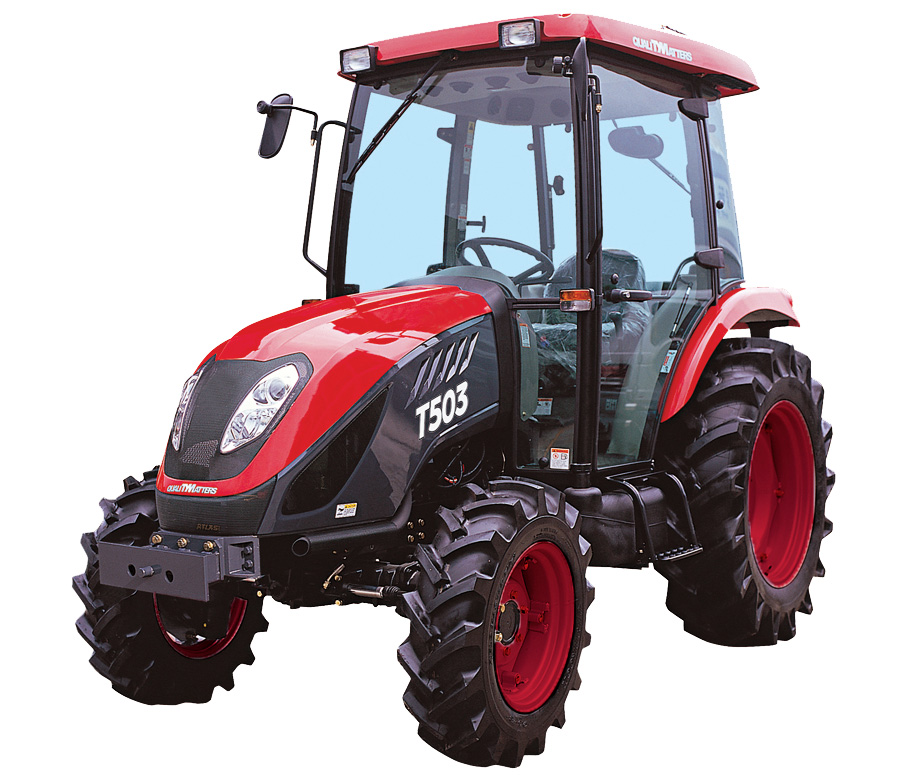

T503 Manual Cabin Utility Tractor

FEATURES OF THE TYM ‘T503’ TRACTOR

ENGINE

• Powered by 50hp Perkins naturally aspirated 4 cylinder Diesel engine
• Perkins Diesel is a global engine manufacturer of quality, giving you the confidence in reliability and after-sales support
• Engine certified to meet the stringent Tier III engine and noise emission standards
• 2216cc engine with 142.7Nm of torque at 1800rpm
• A generous engine capacity of 2216cc, resulting in high torque for serious work
• Dual dry element air cleaner for Australia’s dusty conditions
• A large capacity 60 litre fuel tank for many working hours between refueling and easy fill access

DRIVELINE

• The tractor weight of 1900kg (Cabin version) is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is, in part a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation
• See optional front end loader for details

• Synchro Shuttle with lever on left side under the steering wheel ideal for front end loader operation
• 16 transmission speeds available between 0.6-30 KM/H
• 4 speed main gear lever
• 4 ranges with creeper reduction speeds

• The heavy duty front axle performs in tough working conditions and handles loads with ease
• A long wheel base and wide stance increases stability in all conditions

• Rear axle with diff-lock for difficult traction situations
• 4WD and the diff-lock provides better traction, control and performance
• 4WD mode is controlled by a lever on the left hand side of the operator

• Inboard wet disc brakes can be split for independent left and right side braking to assist turning in tight situations

PTO, HYDRAULICS & LINKAGE

• Controls for the linkage and hydraulic remotes are on the right-hand side
• The 3-point linkage has postition and draft control
• Draft control automatically lifts the ground-engaging implement from the soil when excessive load is experienced
• Hydraulic remotes are ideal for the operation of log splitters, post hole augers and a wide range of implements

• 2 sets of double-acting hydraulic remotes
• Category 1. 3-point linkage with 1503kg lifting capacity gives the tractor great versatility and range of applications
• Telescopic extendable lower link arms for easy implement connections

• The PTO driveline is a simple and direct design for high efficiency and power
• The PTO clutch is an independent oil immersed clutch pack for long life with simple push-button operation
• Auto-PTO function automatically disengages the PTO when the linkage is raised, and automatically reengages when lowered; a great function that simplifies repeated row work and prevents implement damage

COCKPIT

• Ergonomic design with easy to reach controls
• Easy to read instrument panel
• Titlable steering wheel
• Combination switch controls lights and indicators
• Digital hour meter display
• PTO On/Off Switch

• Tiltable steering wheel

• Fully integrated joystick for control of front end loader with electric button for third function operation (when fitted)
• See optional front end loader for details

• Wide distance between rear mudguard and dash panel provides easy access on and off the tractor
• Uncluttered flat floor without trip hazards is the largest surface area in its class
• Rubber floor mat reduces noise and provides an easy to maintain surface

• Adjustable suspension seat for comfort

OPTIONS

FRONT END LOADER

• Level lift front-end loader ideal for materials handling and utility work around the farm
• Full details & specifications on the optional front end loader

TYRES

• Choice of agricultural, industrial or turf tyres
